Accessories

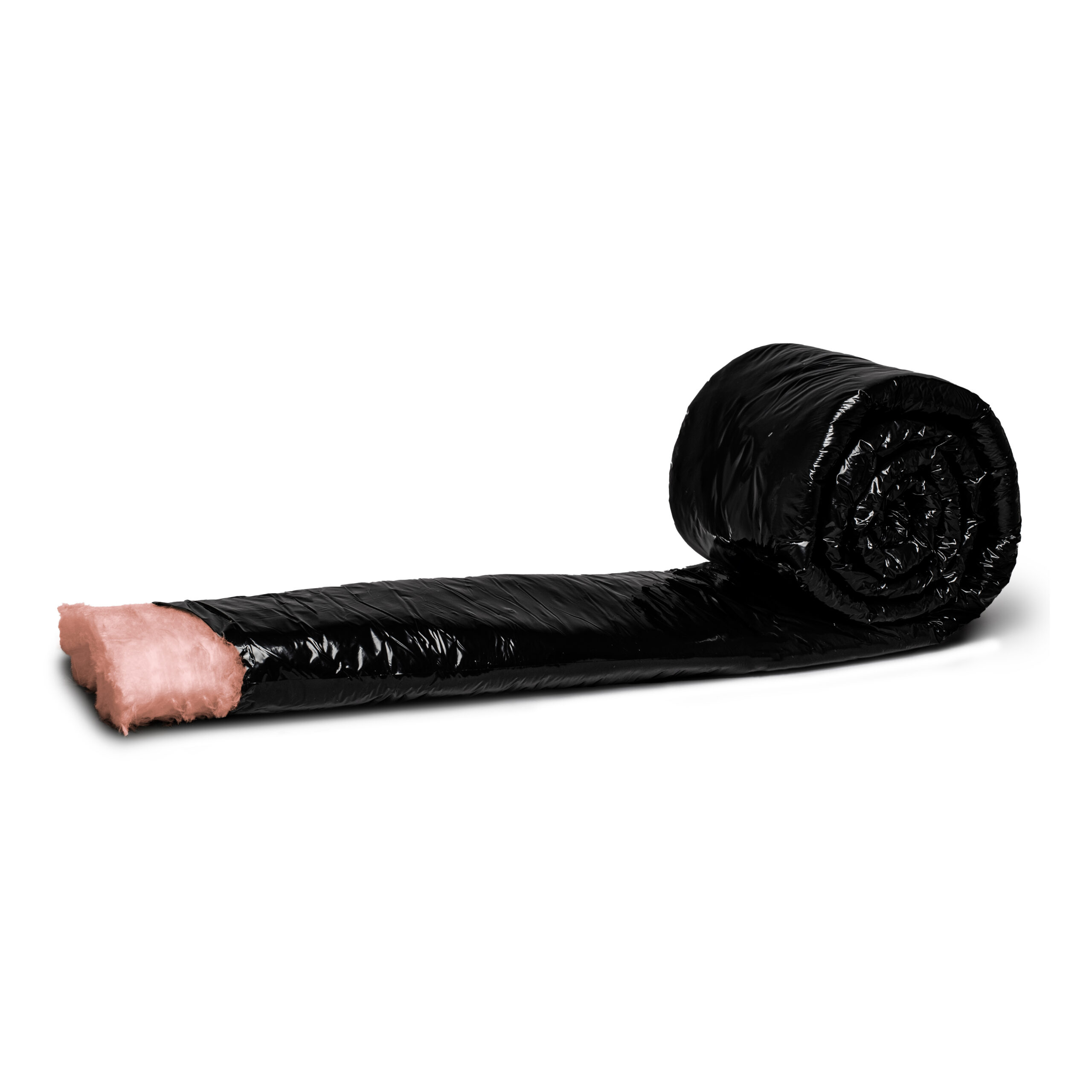

Duct Insulation Sleeves – Black Jacket

Dundas Jafine’s duct insulation sleeves are ideal for insulating existing rigid or semi-rigid round ducts.  This product helps reduce heat as well as condensation build-up. Both components of the product contain the same fire retardants found in our UL 181 approved flexible insulated ducting.

Features include a fire retardant, black polyethylene vapor barrier. This product is available in R insulation factors R 4.2 and R 6.0.

Downloads

Specifications

Product CodeProduct DescriptionSizePack QtyPackaging Type
BIS45Duct Insulation Sleeves R 4.2 – Black Jacket4" x 5'8Standard Carton
BIS55Duct Insulation Sleeves R 4.2 – Black Jacket5” x 5’8Standard Carton
BIS65Duct Insulation Sleeves R 4.2 – Black Jacket6” x 5’8Standard Carton
BIS75Duct Insulation Sleeves R 4.2 – Black Jacket7” x 5’8Standard Carton
BIS85Duct Insulation Sleeves R 4.2 – Black Jacket8” x 5’8Standard Carton
BIS95Duct Insulation Sleeves R 4.2 – Black Jacket9” x 5’8Standard Carton
BIS105Duct Insulation Sleeves R 4.2 – Black Jacket10” x 5’8Standard Carton
BIS125Duct Insulation Sleeves R 4.2 – Black Jacket12” x 5’8Standard Carton
BIS145Duct Insulation Sleeves R 4.2 – Black Jacket14” x 5’6Standard Carton
BIS165Duct Insulation Sleeves R 4.2 – Black Jacket16” x 5’6Standard Carton
BIS310Duct Insulation Sleeves R 4.2 – Black Jacket3” x 10’4Standard Carton
BIS310PDuct Insulation Sleeves R 4.2 – Black Jacket3” x 10’4Retail Bag
BIS410Duct Insulation Sleeves R 4.2 – Black Jacket4” x 10’4Standard Carton
BIS410PDuct Insulation Sleeves R 4.2 – Black Jacket4” x 10’4Retail Bag
BIS510Duct Insulation Sleeves R 4.2 – Black Jacket5” x 10’4Standard Carton
BIS510PDuct Insulation Sleeves R 4.2 – Black Jacket5” x 10’4Retail Bag
BIS610Duct Insulation Sleeves R 4.2 – Black Jacket6” x 10’4Standard Carton
BIS610PDuct Insulation Sleeves R 4.2 – Black Jacket6” x 10’4Retail Bag
BIS710Duct Insulation Sleeves R 4.2 – Black Jacket7” x 10’4Standard Carton
BIS810Duct Insulation Sleeves R 4.2 – Black Jacket8” x 10’4Standard Carton
BIS1010Duct Insulation Sleeves R 4.2 – Black Jacket10” x 10’4Standard Carton
BIS45R6Duct Insulation Sleeves R 6.0 – Black Jacket4” x 5’8Standard Carton
BIS55R6Duct Insulation Sleeves R 6.0 – Black Jacket5” x 5’8Standard Carton
BIS65R6Duct Insulation Sleeves R 6.0 – Black Jacket6” x 5’8Standard Carton
BIS75R6Duct Insulation Sleeves R 6.0 – Black Jacket7” x 5’8Standard Carton
BIS85R6Duct Insulation Sleeves R 6.0 – Black Jacket8” x 5’8Standard Carton
BIS95R6Duct Insulation Sleeves R 6.0 – Black Jacket9” x 5’6Standard Carton
BIS105R6Duct Insulation Sleeves R 6.0 – Black Jacket10” x 5’6Standard Carton
BIS125R6Duct Insulation Sleeves R 6.0 – Black Jacket12” x 5’6Standard Carton
BIS145R6Duct Insulation Sleeves R 6.0 – Black Jacket14” x 5’4Standard Carton
BIS165R6Duct Insulation Sleeves R 6.0 – Black Jacket16” x 5’4Standard Carton
